1. Product Composition
Component |
Specification |
Description |
Main Body |
Premium H59 Brass |
One-piece casting, corrosion-resistant, high-pressure resistant, with 10-layer plating |
Spout |
Premium H62 Brass |
High-curved design, 360° swivel, fits large cookware, with 10-layer plating |
Cold/Hot Water Cartridge |
Ceramic Disc Cartridge |
smooth operation |
Boiling Water Cartridge |
High-temperature Resistant Cartridge |
Designed for boiling water systems, works with safety lock |
Inlet Hoses |
WRAS Approved Braided Hoses |
high-pressure and high-temperature resistant |
Boiling Water Tube |
Food-grade Silicone Tube |
Direct contact with boiling water,heat-resistant, |
Handles |
Zinc Material |
Dual independent handles for separate control of mixed water and boiling water,with 10-layer plating |
Safety Lock Button |
Spring Mechanism |
Anti-scald design to prevent accidental activation of boiling water |
Aerator |
Neoperl Aerator |
Soft,high-temperature resistant for boiling water outlet |
2. Colors available:
Chrome, Brushed nickel, Gun mental, Matt black, Brushed brass, Golden,
3. Operation Guide
3.1 Cold/Hot Mixed Water (Right Handle)
Turn on: Lift the handle upward. The higher you lift, the stronger the flow.
Adjust temperature: Rotate the handle left (colder) or right (hotter). The center position delivers warm water.
Turn off: Push the handle back down to its original position.

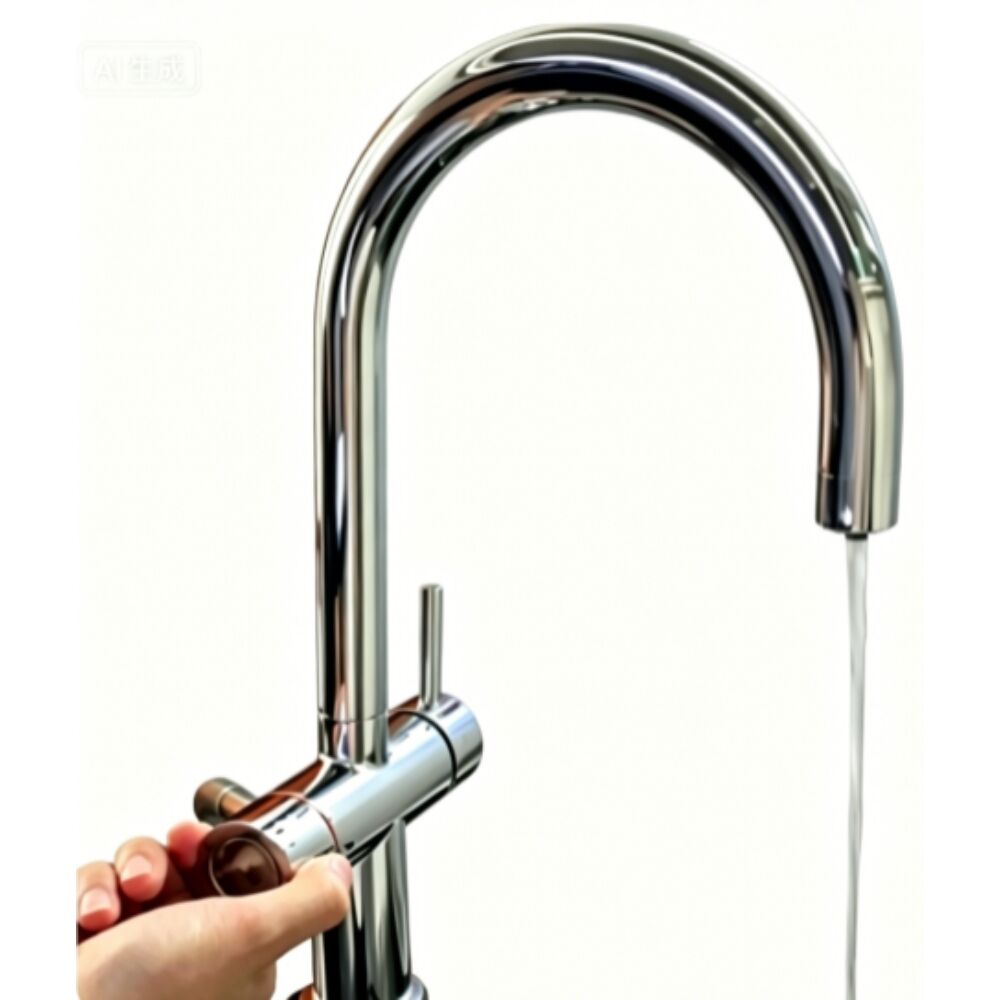

3.2 Boiling Water (Left Safety-locked Handle)
Turn on: Press the safety lock button to unlock the handle.Lift the handle upward to dispense boiling water.
Turn off: releasing your hand, and the safety lock will automatically reset the handle to shut off the boiling water.
4. Key Features
4.1 3-in-1 Multi-function: Combines cold/hot mixed water and boiling water in one tap, eliminating clutter from multiple fixtures on your kitchen counter.
4.2 Dual Isolated Waterways: The boiling water path uses a dedicated food-grade silicone tube, completely separate from mixed water to prevent cross-contamination.
4.3 WRAS Approved Inlet Hoses: Meets UK drinking water safety standards, ensuring safe, reliable connections for your water supply.
4.4 Anti-scald Safety Lock: The boiling water handle requires a deliberate press-and-turn action, making it safe for households with children and the elderly.
4.5 All-brass Construction: Premium brass body and spout with a polished chrome finish for durability, corrosion resistance, and long-lasting shine.
4.6 360° Swivel Spout: The high-arc spout rotates freely to cover the entire sink, providing ample clearance for large pots and pans.
4.7 Independent Cartridge Control: Separate cartridges for mixed and boiling water ensure stable operation and extended lifespan.
5. Applications
5.1 Home Kitchens: Daily dish washing and food prep with mixed water; safe, instant boiling water for tea, coffee, and baby formula.
5.2 Commercial Catering: Restaurants, cafes, and food service settings benefit from fast, safe boiling water access and efficient cleaning.
5.3 Office Pantries: A convenient solution for workplace kitchens, providing employees with both drinking and cleaning water.
5.4 Water Filtration Systems: Seamlessly integrates with most under-sink boiling water units and water filters for a complete kitchen solution.
6. Installation Notes
6.1 Pre-installation Preparation
Shut off the main water supply and drain residual water from the pipes.
Confirm your sink has a standard single-hole opening, which fits this tap without additional drilling.
Identify and separate your water lines: the right handle connects to your cold/hot water supply, and the left handle connects to your boiling water system. Do not mix them up.
6.2 Installation Steps
Connect the WRAS-approved braided hoses to the tap’s inlets. Tighten the nuts carefully to avoid damaging the threads.
Ensure the food-grade silicone tube for boiling water is properly installed, free of kinks, and all high-temperature seals are in place.
Place the tap on the sink, add the rubber gasket, and securely tighten the mounting nut from below to prevent wobbling.
6.3 Post-installation Testing
Turn on the cold/hot water supply and check all connections for leaks. Test the flow and temperature control.
Activate your boiling water system and test the safety lock and boiling water flow, checking for leaks or unusual noises.
Verify the spout swivels 360° smoothly without jamming.
7. Usage Instructions
7.1 Daily Use: Use the right handle for all cleaning tasks. For boiling water, always use the left handle with the safety lock engaged.
7.2 Safety Precautions:
Avoid touching the boiling water outlet directly during or after use, as it will be hot.
Do not force the boiling water handle when it is locked, as this can damage the safety mechanism.
8. Troubleshooting
Problem |
Possible Cause |
Solution |
No/low mixed water flow |
Supply valve closed, hose kinked, |
Open the supply valve, straighten the hose, |
No boiling water |
System not on, silicone tube kinked, safety lock not pressed, or faulty cartridge |
Start the boiling system, straighten the tube, press the safety lock, or contact support for cartridge replacement
|
Leaking at connections |
Worn cartridge or damaged internal seals |
Replace the ceramic cartridge or contact support |
Boiling water handle won’t move |
Safety lock not pressed or internal mechanism stuck |
Press the safety lock button firmly. If it still won’t move, contact support |
Bad taste/odor from boiling water |
Silicone tube not rinsed or water quality issue |
Rinse the silicone tube thoroughly with boiling water before first use; verify your boiling water system’s water quality |
9. Maintenance & Care
9.1 Daily Cleaning: Wipe the surface with a soft cloth and mild detergent. Avoid abrasive cleaners or steel wool, which can scratch the finish.
9.2 Regular Maintenance:
For long-term non-use, shut off the water supply and boiling system, then drain the tap to prevent freezing or stagnation.
10. Target Users
10.1 Family Households: Especially those with children or elderly members, thanks to the anti-scald safety lock and separate drinking water system.
10.2 Catering Professionals: Restaurants, cafes, and food businesses needing efficient, safe access to both cleaning and boiling water.
10.3 Office Managers: Ideal for workplace kitchens to provide convenient drinking water for employees.
10.4 Water Filtration Users: A perfect companion for under-sink boiling water and filtration systems, offering a clean, all-in-one solution.
10.5 Design-conscious Homeowners: The single-hole installation keeps kitchen counters tidy and modern-looking.
11.FAQ
Q: Do I need to hold the safety button the whole time to dispense boiling water?
A: Yes, the safety lock requires continuous pressure to activate, so the boiling water stops immediately when you release the handle, preventing accidental scalding.
Q: Can I connect this tap directly to my mains water?
A: The cold/hot mixer side works with standard mains water. The boiling water outlet is designed to connect to a filtered boiling water system to ensure safe drinking water quality.
Q: Does the spout rotate?
A: Yes, the high-arc spout swivels 360° for flexible water direction control across the sink.
Q: Is extra drilling required for installation?
A: No, it uses a standard single-hole installation, fitting most existing kitchen sinks without modification.
