High-Altitude Plumbing: Solving Pressure Balancing and Air-Lock Challenges in Mountain Resort Thermostatic Mixers

Introduction

Mountain resorts present a unique set of challenges for plumbing engineers and hospitality developers. While guests expect the luxury of a stable, high-pressure hot shower after a day on the slopes, the physics of high-altitude environments works against the equipment. Specifically, thermostatic mixing valves (TMVs)—the heart of luxury shower systems—often struggle with pressure differentials and "air-lock" phenomena caused by lower atmospheric pressure and complex elevation changes in vertical piping.

Zhejiang Xindong Sanitary Ware Co., Ltd., with over 65 patents in tap and valve technology, has been at the forefront of developing high-performance thermostatic solutions that meet the rigorous demands of high-altitude hospitality projects. In this guide, we dive deep into the technical challenges of mountain resort plumbing and how precision engineering can mitigate these risks.

The Physics of High-Altitude Plumbing

At high altitudes, atmospheric pressure is significantly lower than at sea level. This shift affects the boiling point of water and the behavior of air trapped within the system. For every 1,000 meters of elevation, the boiling point of water drops by approximately 3.3°C. In a hotel's secondary circulation system, this can lead to premature cavitation in pumps and increased air release from the water.

1. The Pressure Balancing Act

Most thermostatic mixers are designed to operate optimally within a specific pressure range (typically 1.0 to 5.0 bar) and with balanced hot and cold supply pressures. In mountain resorts, the vertical distance between the boiler room and the guest rooms can be vast. In a gravity-fed or multi-stage pumped system, the pressure at the top floor might be significantly lower than at the bottom.

When the cold water supply pressure differs from the hot water supply by more than 0.5 bar, standard thermostatic cartridges may fail to maintain a stable temperature. Guests experience "temperature spiking," which is not only a comfort issue but a safety risk (scalding).

2. The Air-Lock Phenomenon

"Air-lock" occurs when air bubbles become trapped in the highest points of a plumbing loop or within the intricate channels of a mixing valve. At high altitudes, air is less soluble in water and more likely to form large pockets. These pockets can completely block water flow or cause the thermostatic element to "hunt" (rapidly oscillating between hot and cold), leading to premature wear and failure.

Xindong’s Engineering Solutions: The High-Altitude Advantage

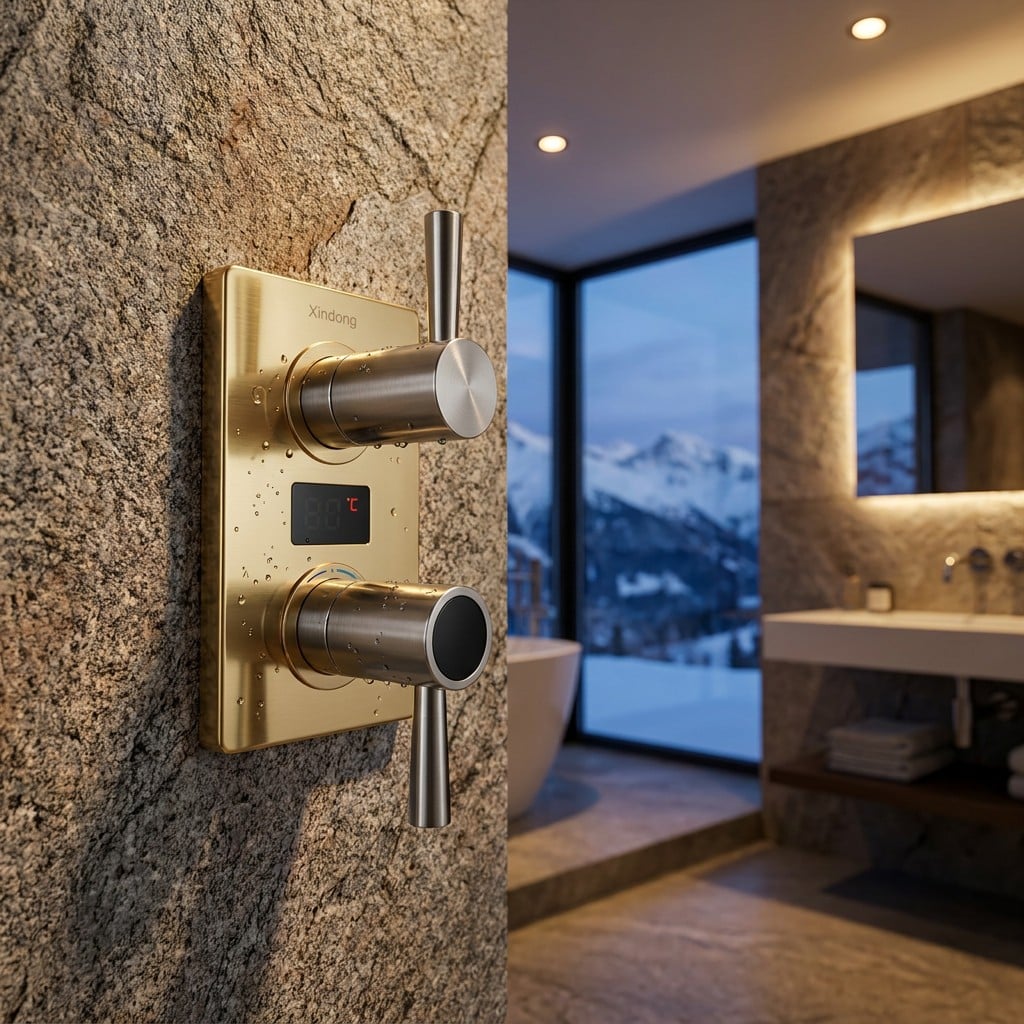

Xindong's thermostatic mixers are engineered with specific features to address these mountain-specific challenges.

Precision Thermostatic Cartridges (EN1111 Standard)

Our valves are built to exceed the EN1111 European standard for thermostatic mixing valves. We utilize high-sensitivity wax elements that react to temperature changes in less than 1 second. This rapid response is critical in high-altitude systems where pressure fluctuations are more frequent due to air pockets.

Dynamic Pressure Compensation

Xindong mixers incorporate integrated check valves and flow regulators that help stabilize the input pressure before it reaches the thermostatic mixing chamber. Our design includes a wider internal diameter in the "mixing zone" to reduce the impact of small air bubbles, preventing the air-lock effect that often plagues smaller, more restrictive valves.

Material Integrity: DZR Brass

High-altitude water often has a different chemical profile, sometimes being more "aggressive" due to higher oxygen content. Xindong uses high-grade Dezincification Resistant (DZR) brass. This material prevents the leaching of zinc from the alloy, ensuring the valve remains structurally sound and scale-free, which is vital for the long-term reliability of thermostatic elements in remote mountain locations.

Best Practices for Specifiers and Engineers

When designing for mountain resorts, engineers should consider the following:

1. Pressure Reducing Valves (PRVs) and Boosters: Implement multi-zone pressure management to ensure the differential between hot and cold at the mixer remains below 0.5 bar.
2. Automatic Air Vents (AAVs): Install high-capacity air vents at all high points in the system and immediately upstream of the shower mixers.
3. Sizing Matters: Avoid oversizing the distribution pipes. Higher velocity in the pipes helps "scour" air bubbles out of the system, reducing the chance of air-lock.
4. Specify Xindong: Choose mixers that are specifically tested for high-dynamic pressure environments.

Conclusion

The engineering required for a mountain resort's plumbing system goes far beyond standard residential specs. By understanding the interaction between altitude, pressure, and thermostatic technology, specifiers can ensure guest safety and system longevity. Zhejiang Xindong Sanitary Ware Co., Ltd. provides the specialized hardware and technical support needed to conquer these peaks of plumbing engineering.
Interested in a technical consultation for your next mountain project? Contact the Xindong engineering team today.
